Pass EU EN15194, Japan JIS Standard

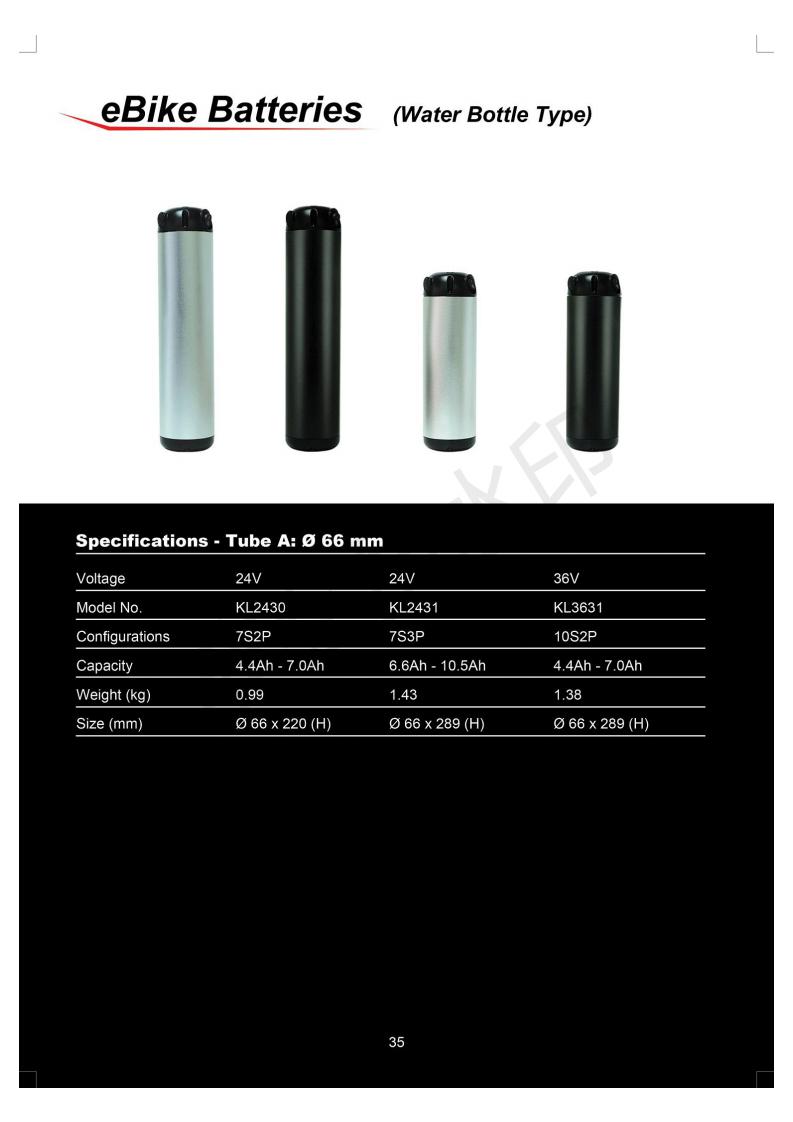

Specifications : Tube A : 66mm

• KL2430 : 24V  7S2P   4.4Ah- 7.0Ah   0.9kg
• KL2431 : 24V  7S3P   6.6Ah-10.5Ah  1.43kg
• KL3631 : 36V  10S2P  4.4Ah-7.0Ah   1.38kg

Pass EU EN15194, Japan JIS Standard

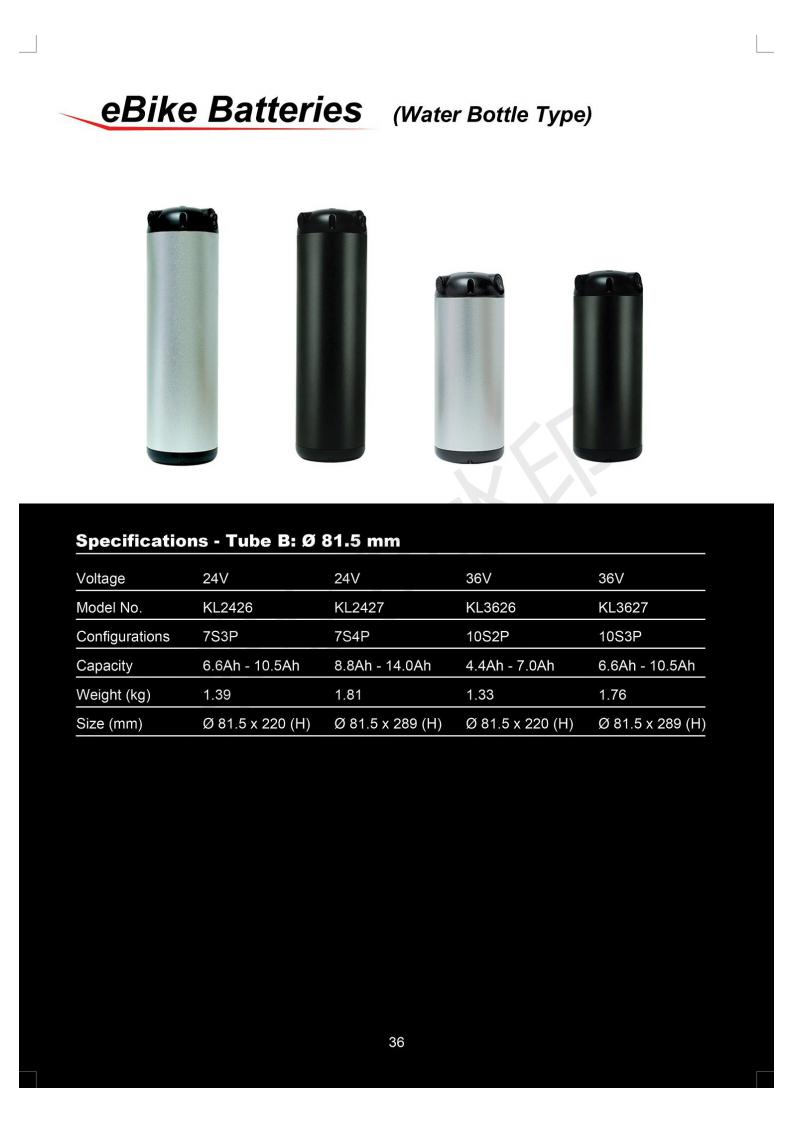

Specifications : Tube B : 81.5mm

• KL2426 : 24V  7S3P    6.6Ah-10.5Ah   1.39kg
• KL2427 : 24V  7S4P    8.8Ah-14.0Ah   1.81kg
• KL3626 : 36V  10S2P  4.4Ah-7.0Ah     1.33kg
• KL3627 : 36V  10S3P  6.6Ah-10.5Ah   1.76kg

Pass EU EN15194,Japan JIS Satadard

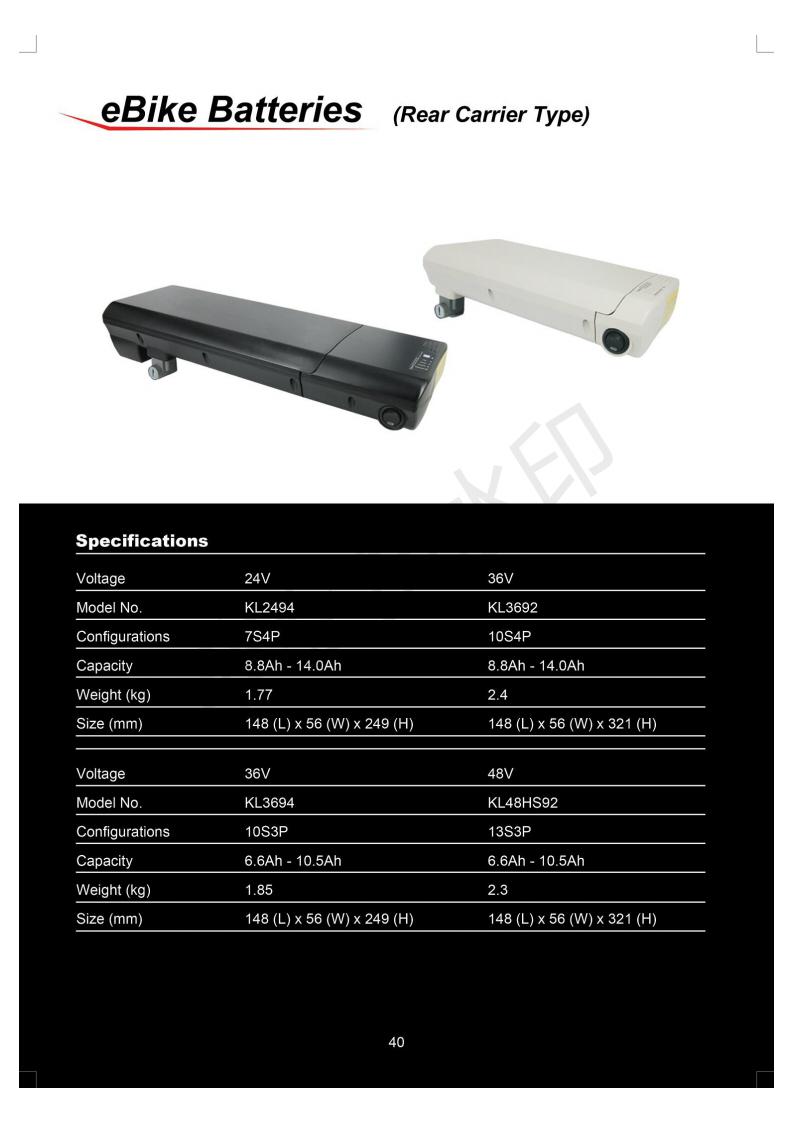

Specifications : Rear Carrier type

• KL2494 : 24V  7S4P    8.8Ah- 14.0Ah   1.77kg
• KL3692 : 36V  10S4P  8.8Ah-14.0Ah    2.4kg
• KL3694 : 36V  10S3P  6.6Ah-10.5Ah    1.85kg
• KL48HS92 : 48V  13S3P  6.6Ah-10.5Ah  2.3kg

Pass EU EN15194, Japan JIS Standard

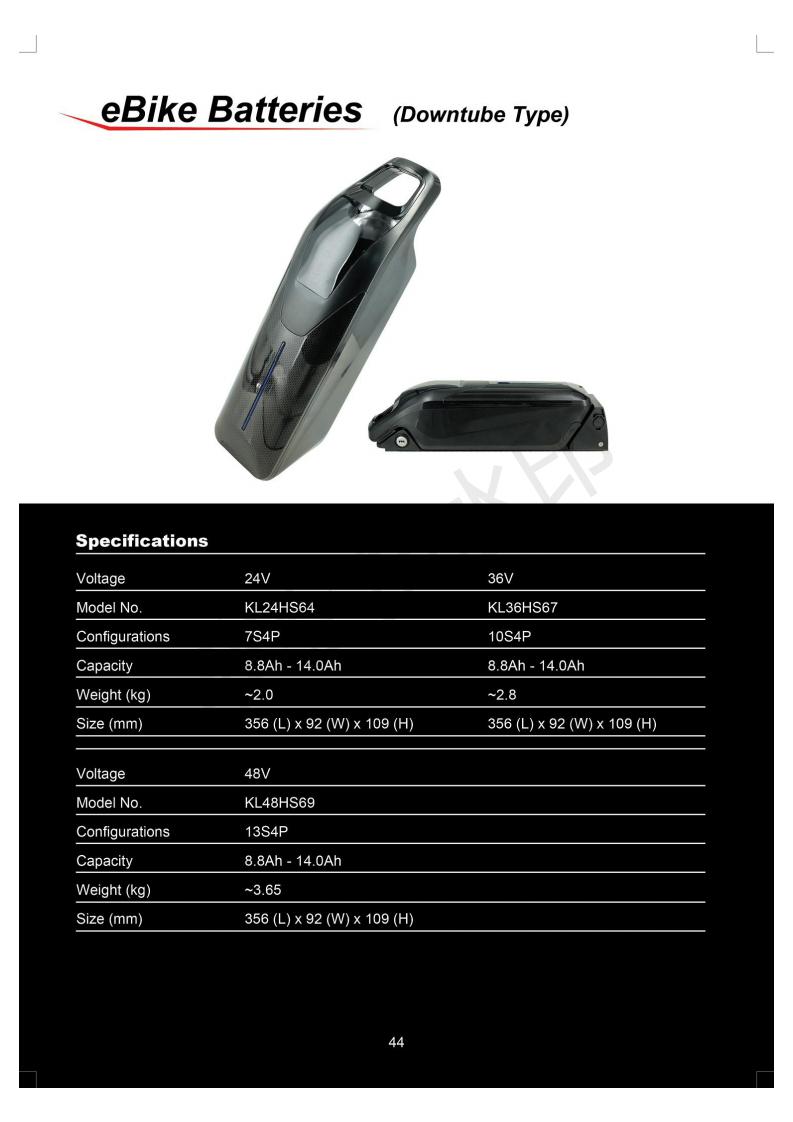

Specifications : Downtube type

• KL2494 : 24V  7S4P    8.8Ah- 14.0Ah   2.0kg
• KL36HS67 : 36V  10S4P  8.8Ah-14.0Ah  2.8kg
• KL48HS69 : 48V  13S4P  8.8Ah-14.0Ah  3.65kg
